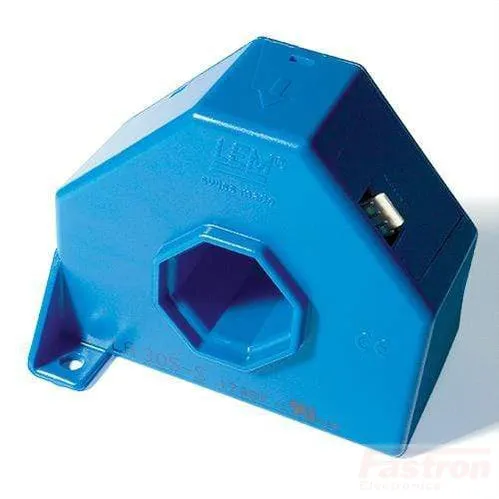

LEM LA 305-S/SP1 Closed Loop AC/DC Hall Effect Sensor

Features

Bandwidth DC to 100kHz
Closed loop transducer using Hall effect
Insulated plastic case recognized according to UL 94-V0

Advantages

Very good linearity
High accuracy
Low temperature drift
Wide frequency bandwidth
Very low insertion losses
High immunity to external interference
Current overload capability
Low power consumption

Applications

AC variable speed drives and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Water Treatment Electronics

Specification

LEM Part Number	LA305-S/SP1
Technology	Closed Loop Hall Effect
Aperture	25.5 x 25.5mm
ROHS	Yes
Supply Voltage	/-12..15 VDC Bipolar, Isolated
Load Current (RMS DC)	500 Amp
Measurement Range	/-800 Amp
Output	250mA
Isolation	6 kV
Bandwidth	DC-100 kHz
Mounting Style	Panel Mount
Operating Temperature Range	-10°C / 85°C
Accuracy	0.8%
Termination Style	Molex series 5046-04/AG
Unit Weight	230g
Factory Pack Quantity	60
