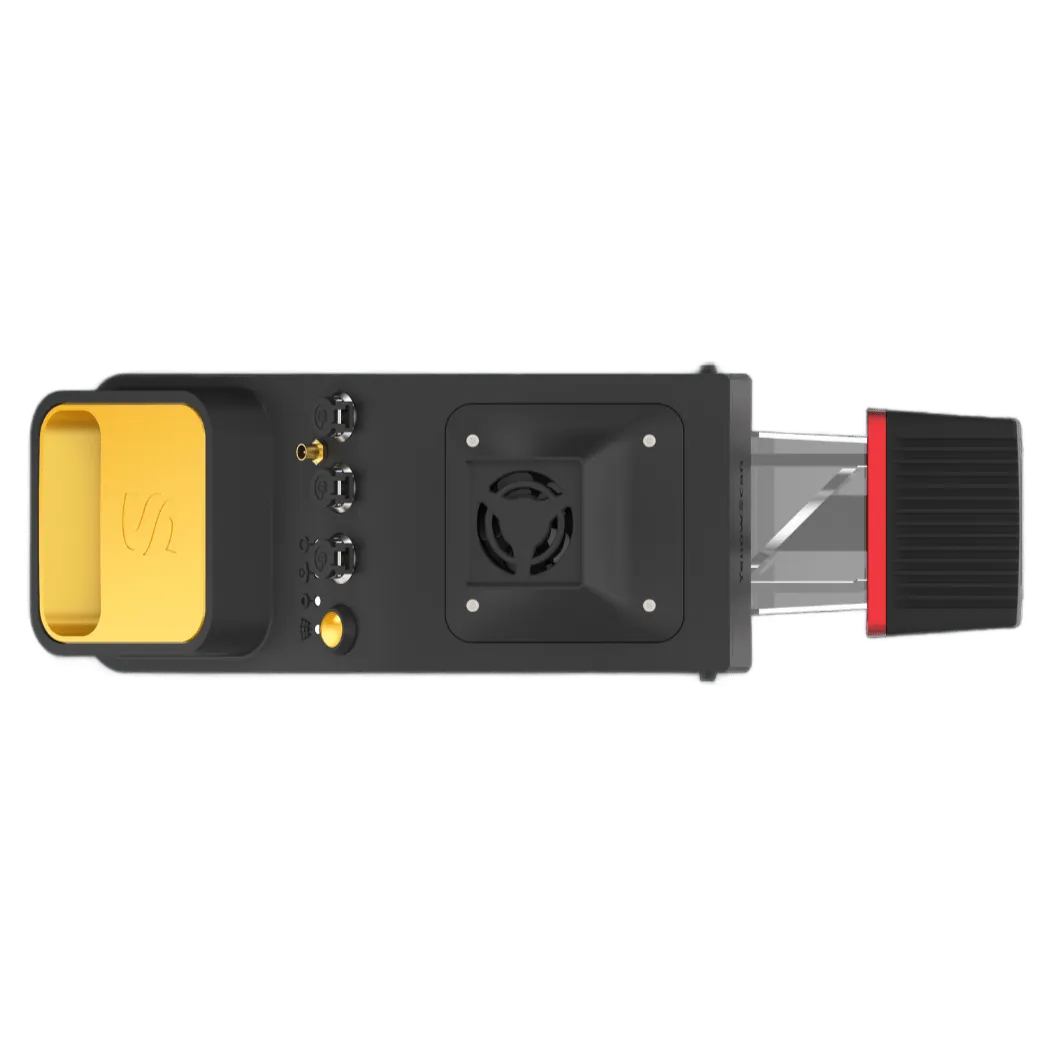

YellowScan® Vx15-100 Integrated System | The Long Range, High Precision UAV LiDAR Solution Made for Adventurers

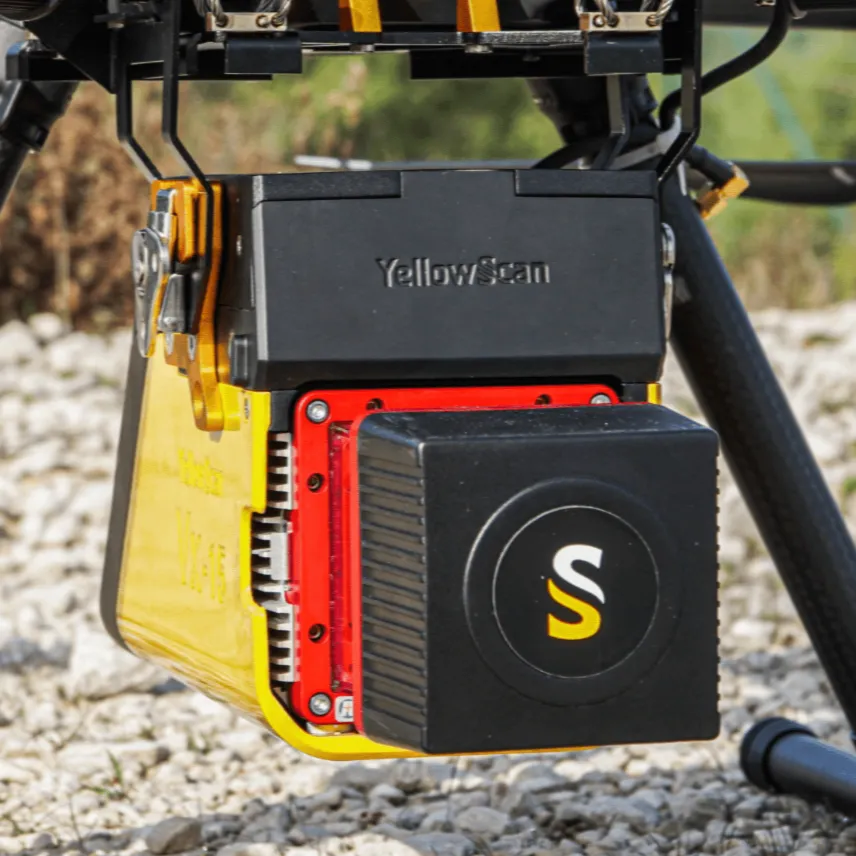

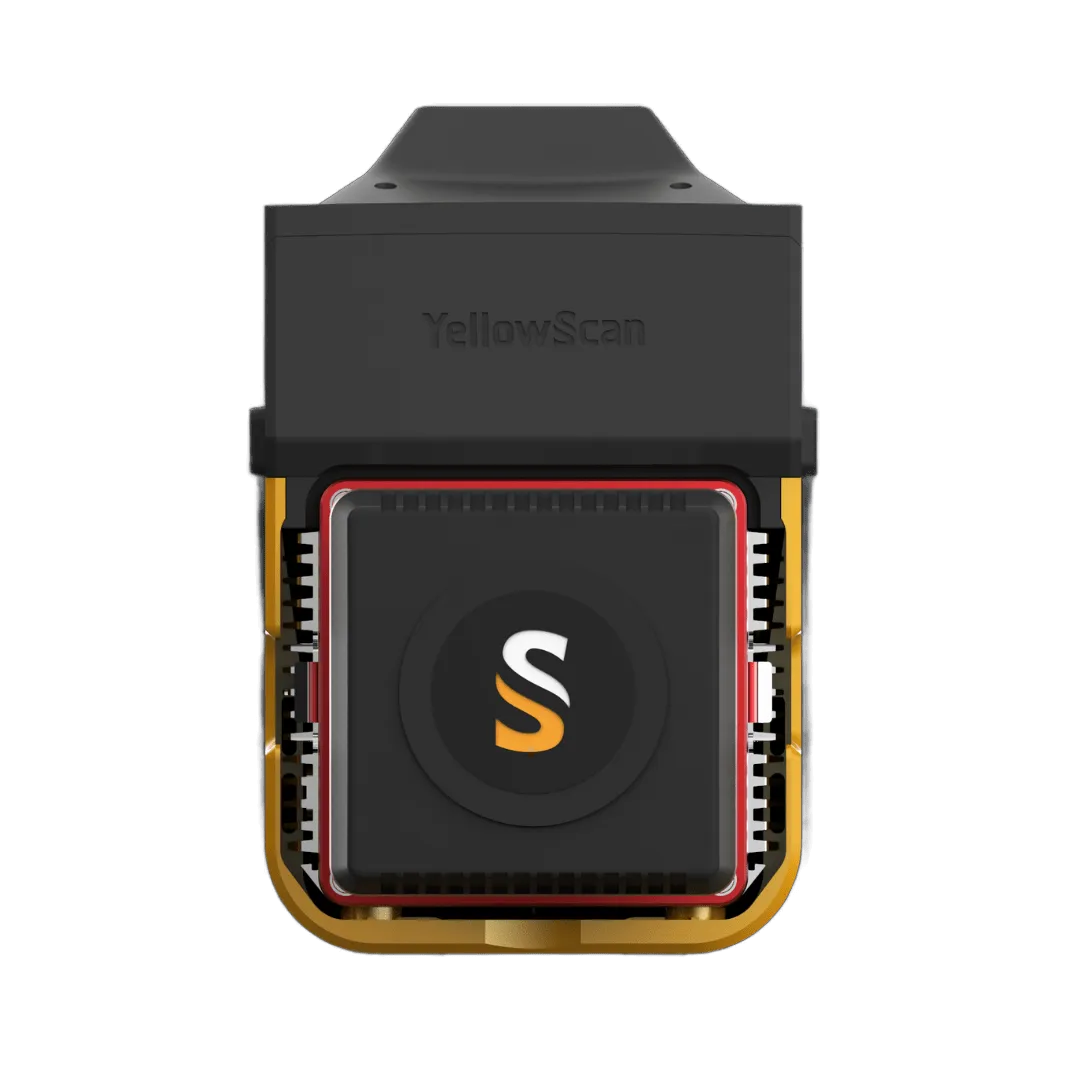

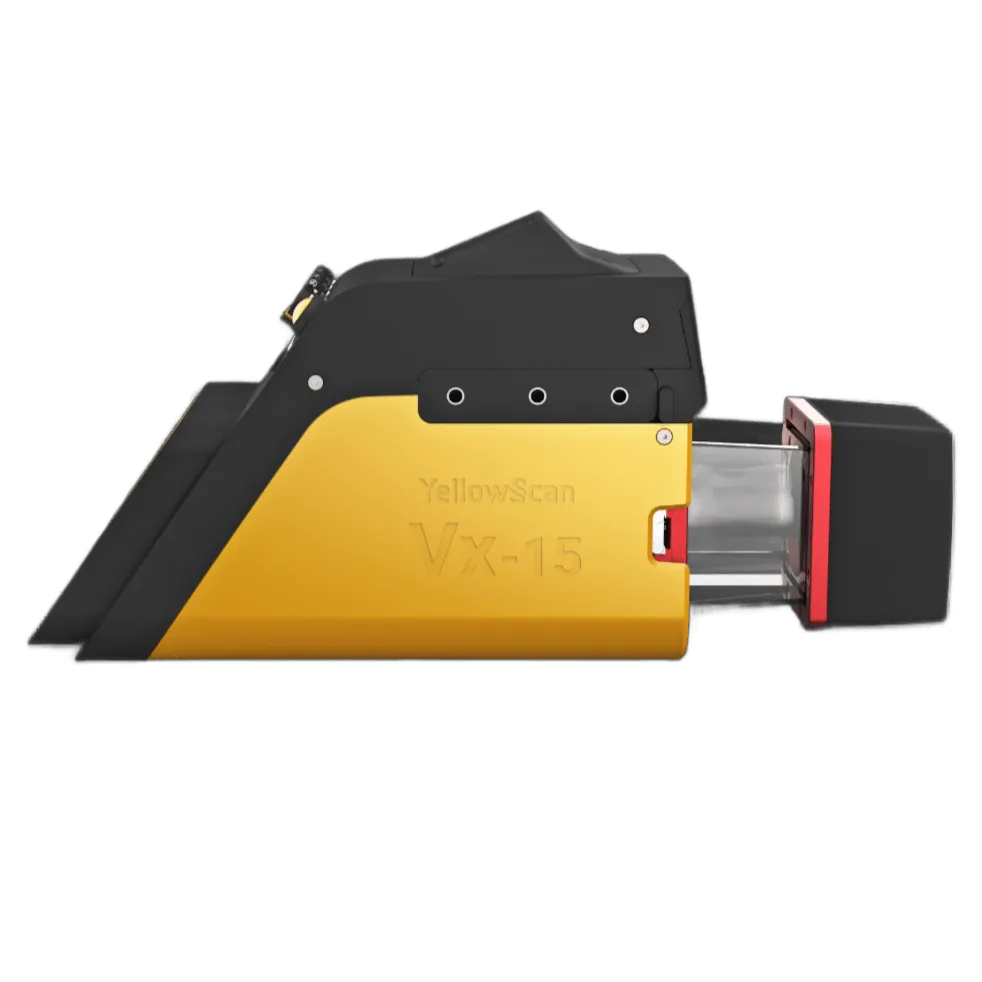

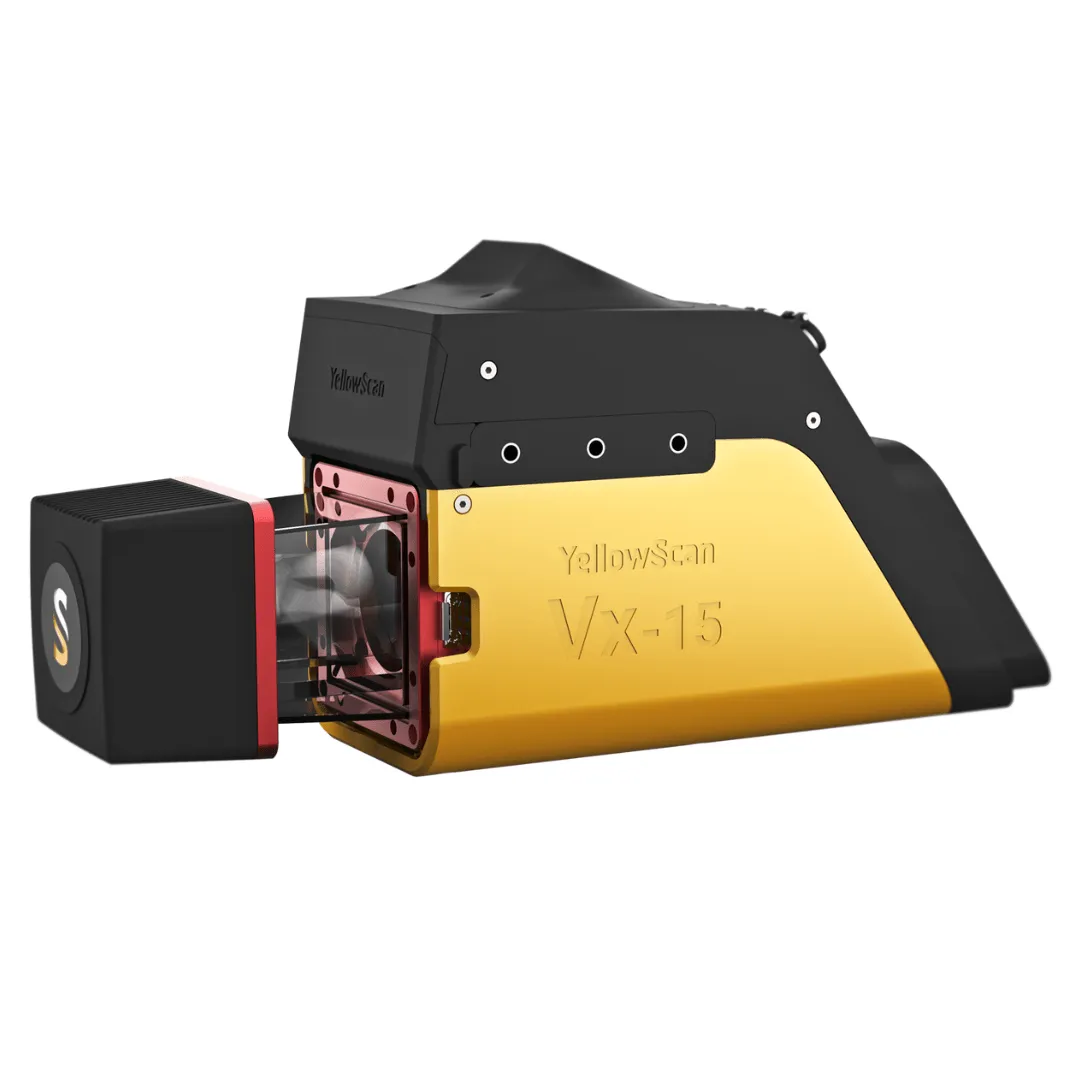

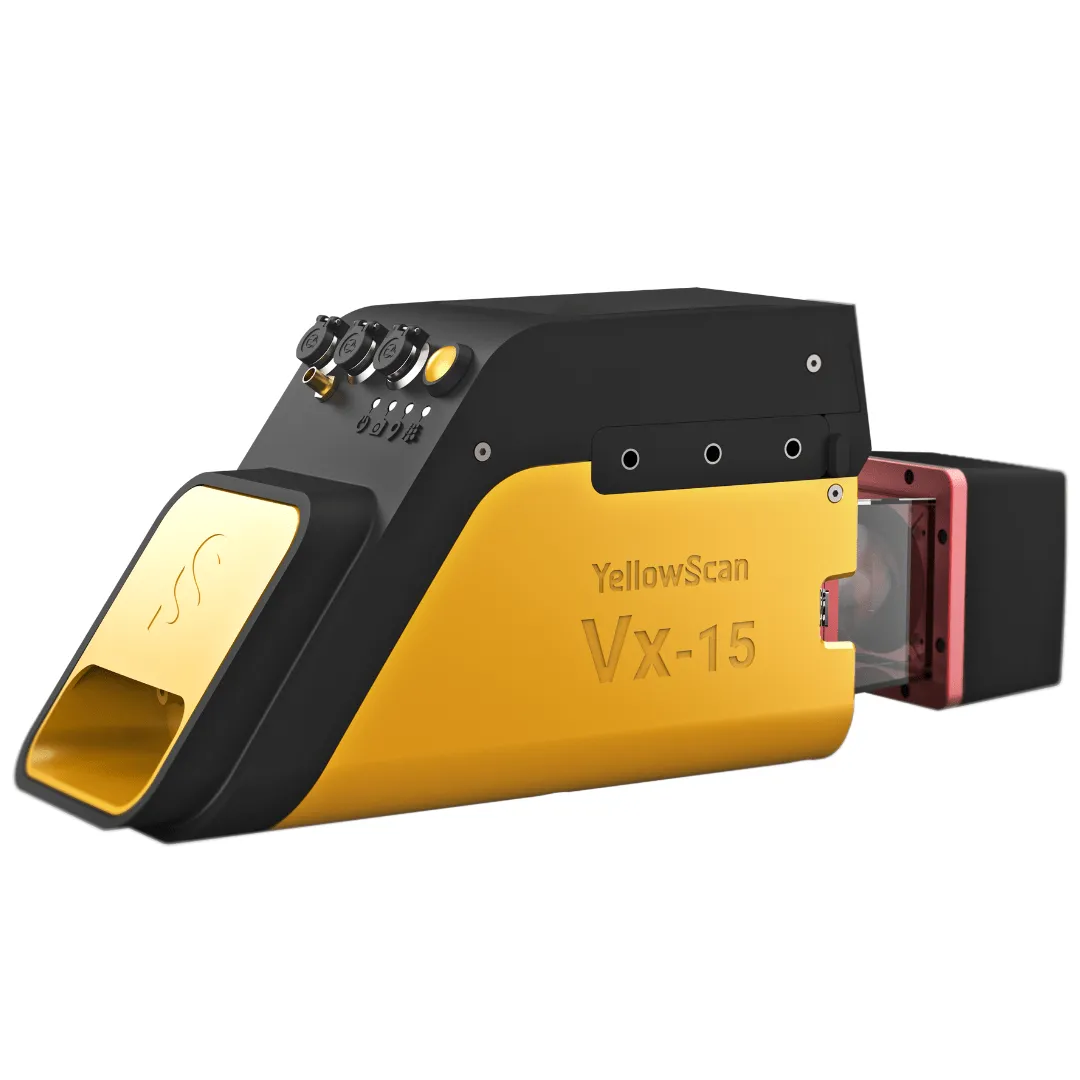

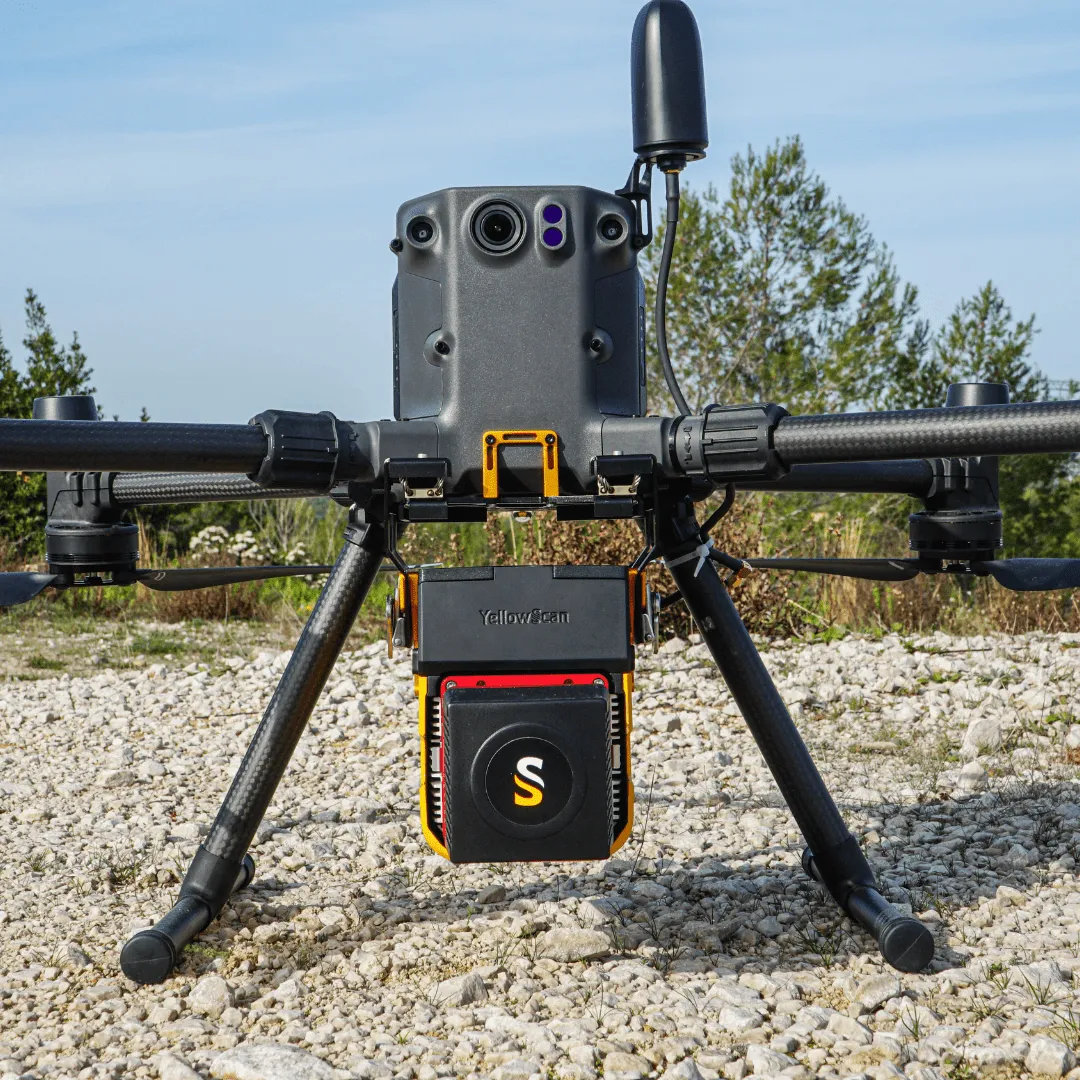

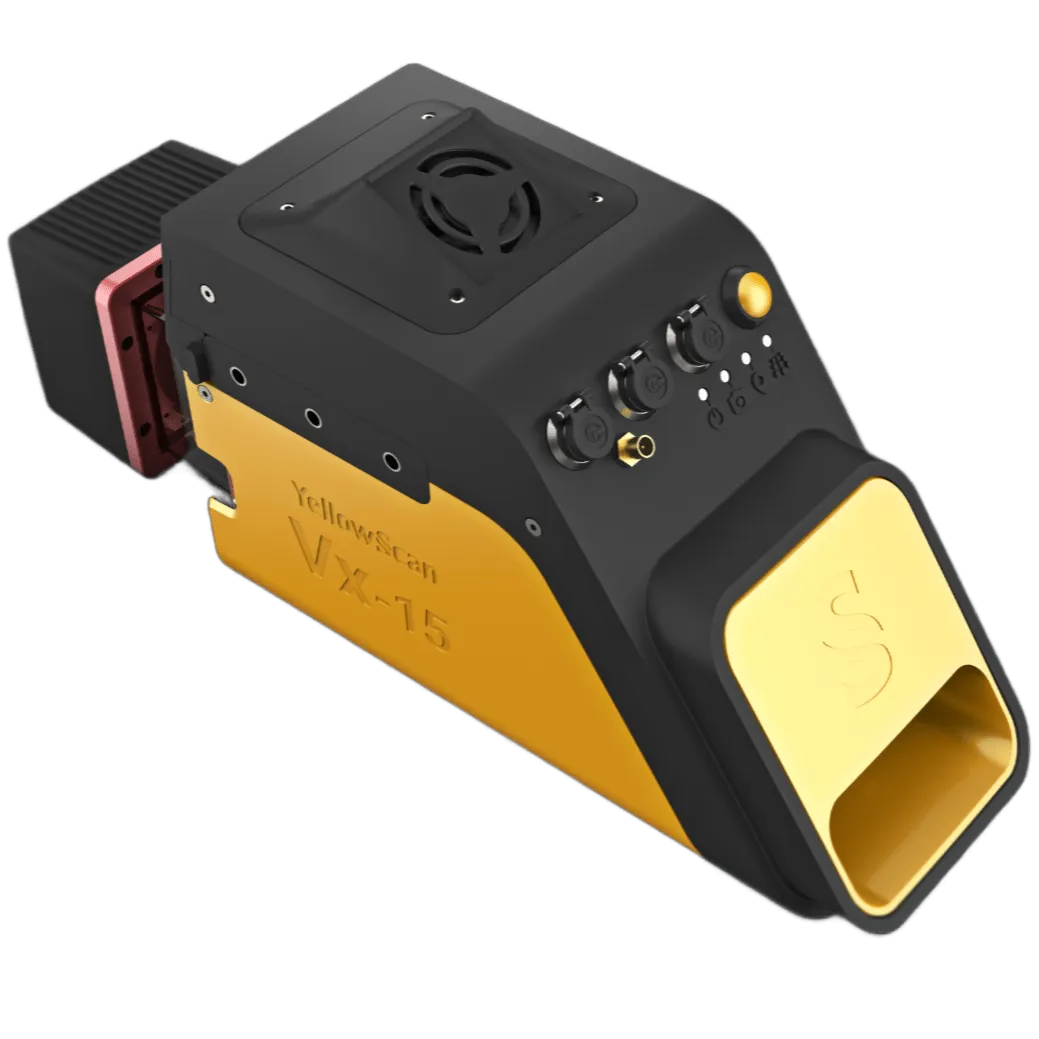

The YellowScan® Vx15-100 is a fully-integrated, easy-to-use LiDAR system that includes the renowned RIEGL MiniVUX-1UAV laser scanner and Applanix UAV IMU APX-15. Ideally suited for high precision surveys such as civil engineering. Coupled with the DJI M300 it allows over 25min flight time maximizing your survey production.
Key Features:
- High Precision Point Cloud
- Calibrated Intensity Value
- Maximized Range
- Lightest System in the Vx Series, with 360° FOV
- Single Board GNSS-Inertial Solution
- Technology Inside: Applanix APX-15UAV / RIEGL MiniVUX-1UAV
Designed to Fit Any UAV

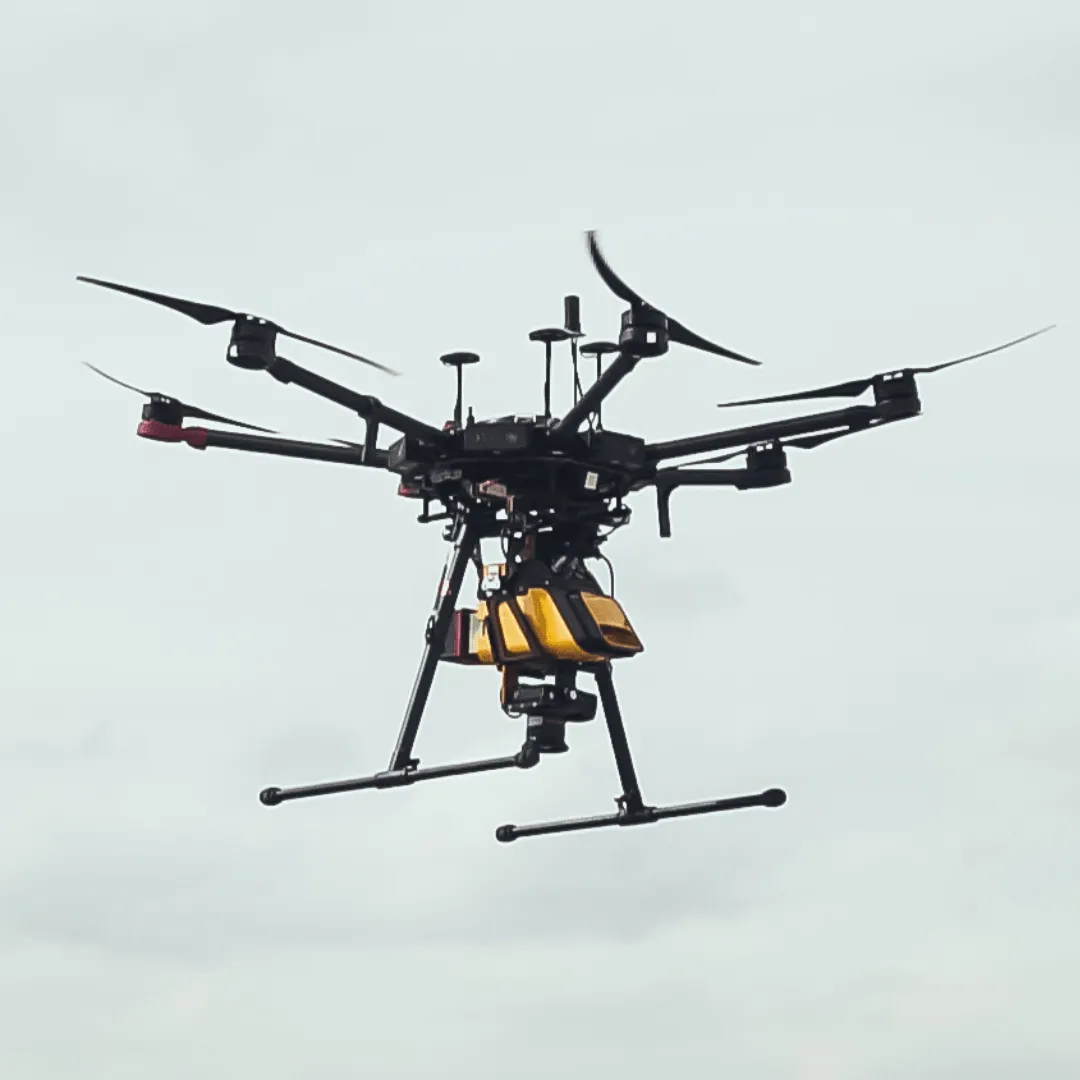

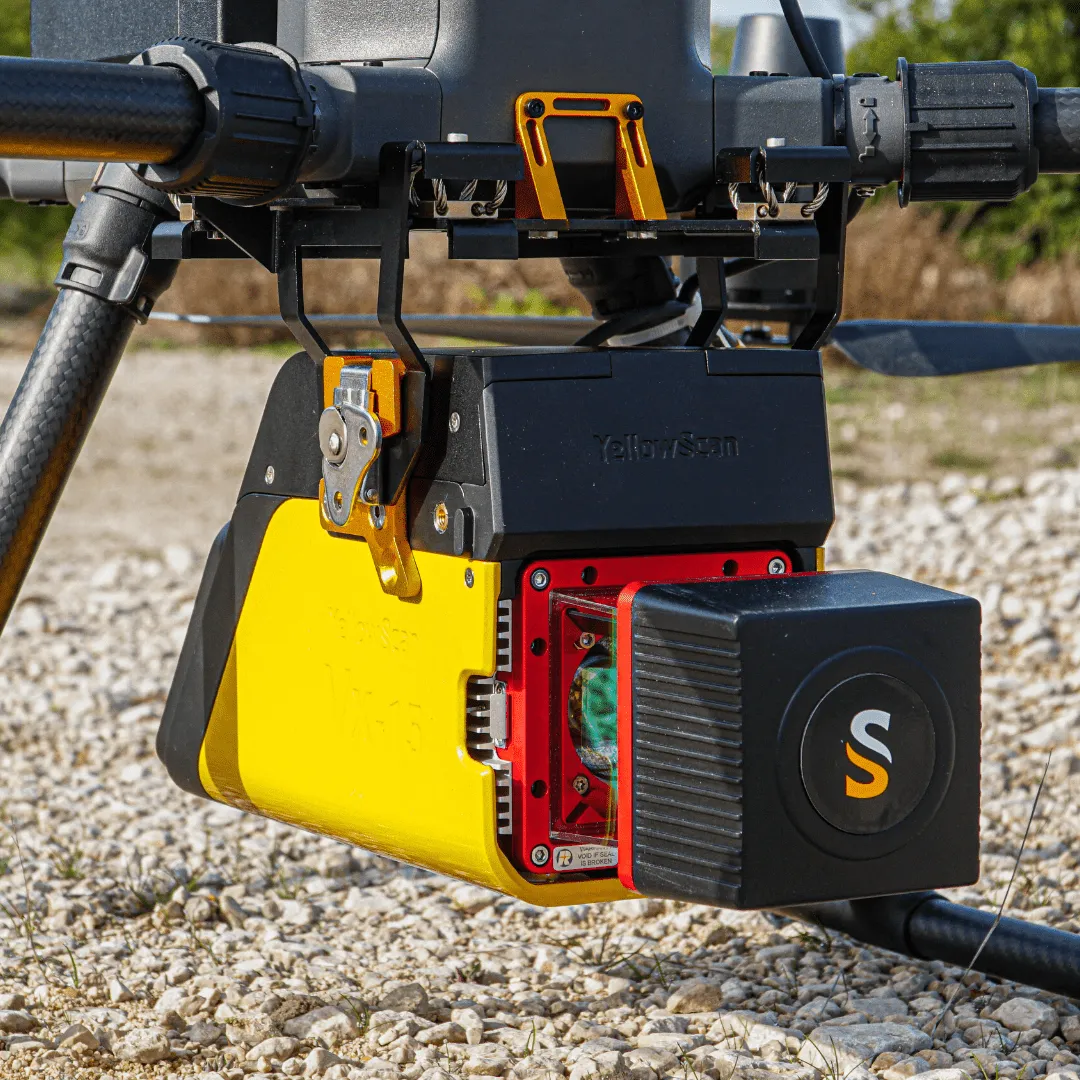

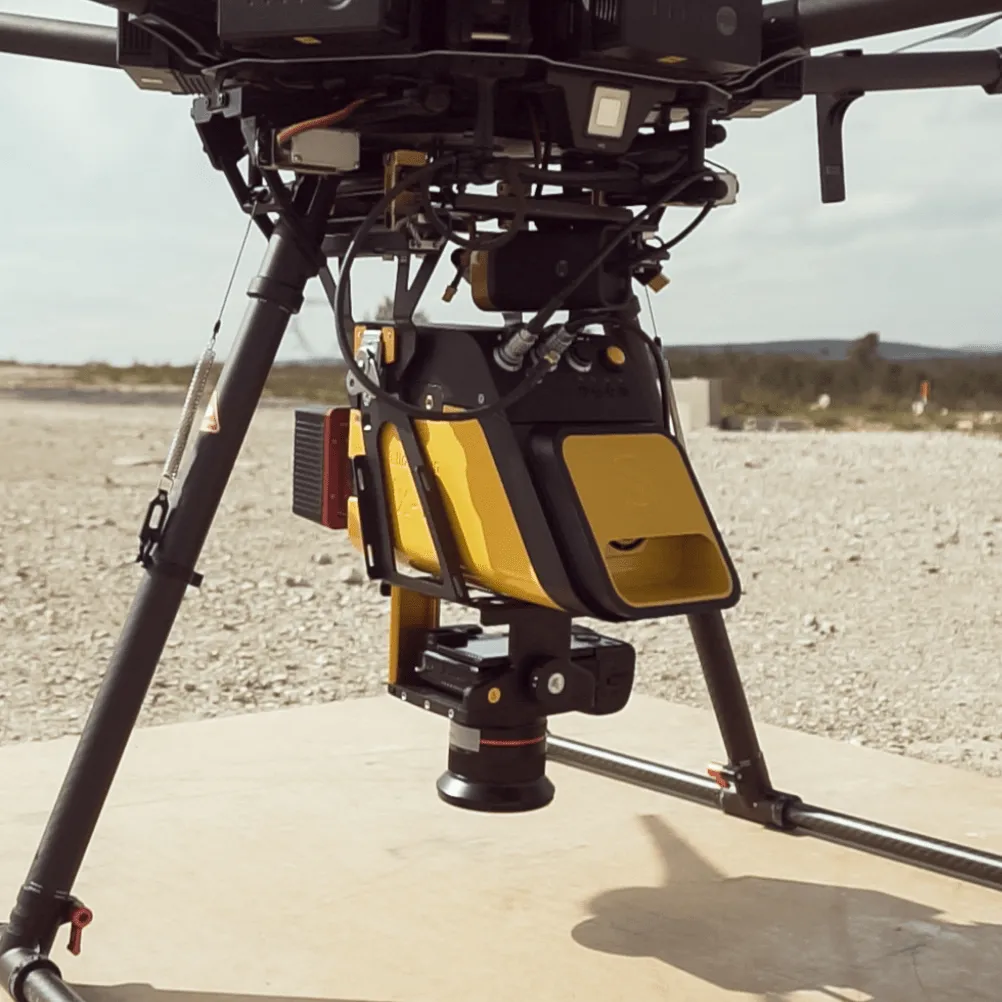

The Vx15-100's light weight allows for easy mounting on a variety of UAVs: multirotor, fixed wing, or helicopter drones.
Enhanced Productivity
The Vx15 series is the ideal solution for high-flight projects with quick data processing needs.
Fit for a Wide Variety of Applications
Ideally suited for applications requiring sharp and accurate descriptions such as in civil engineering.
Data Generation in Just a Few Clicks
Handle pointclouds with YellowScan's own, all-in-one software solution. Extract, process, and display data immediately after flight acquisition. Applanix POSPac UAV, to post-process GNSS and inertial data for highest accuracy YellowScan CloudStation Essential to generate, visualize, inspect, and export data.
Advanced Calibration
All YellowScan systems are calibrated before shipment and come with a calibration certificate. Be ready to fly your system as soon as you receive it!
YellowScan® - Designed to Innovate
Applications
Mining: Challenging working conditions and the need for precise elevation data in open pit mines make UAV LiDAR solutions the latest go-to surveying tool around the world
Civil Engineering: From the initial planning stages to the final project delivery, LiDAR systems are an asset to the construction industry.
Energy & Utilities: Reduce risks and costs in energy and utilities management.
Corridor Mapping: Mapping the vegetation around powerlines is a major issue for most energy companies, along with mapping of the powerline itself to detect any issues
such as line sagging, damage to cables and to structures.
Forestry: Whether it is a commercial or governmental activity, forest management requires detailed data to make proper decisions.
Archeology: LiDAR technology has changed the face of archeology by making it possible to measure and map detailed landscapes that would otherwise remain hidden under centuries of vegetation.
Environmental Research: This technology has revolutionized conservation and environmental research by providing useful information, as 3D pointclouds, in the quest to save forests, animals, and humans.
Media & Entertainment: Turn real-life objects into digital twins. LiDAR is becoming increasingly popular for creating special effects and realistic digital imagery.
Explore a world of possibilities using YellowScan® LiDAR solutions.
In the Box
1 - YellowScan Vx15-100 (Multi-echo RIEGL MiniVUX-1UAV Laser Scanner)
1 - Calibrated APX-15 GNSS-inertial board
1 - GNSS antenna and cable
2 - Integrated batteries
1 - Battery charger and data cables
3 - Connectors for external sensor/camera
2 - USB flash drives

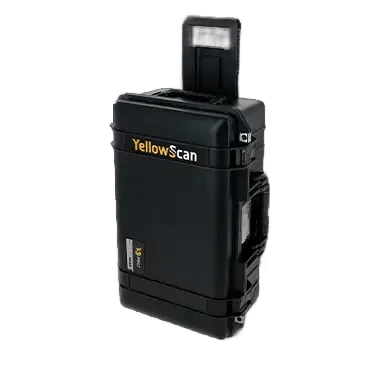

1 - Rugged transport case with customized foam
1 - Applanix POSPAC UAV
1 - YellowScan CloudStation Essential
1 Year warranty
Specifications
Laser scanner: RIEGL MiniVUX-1
GNSS inertial solution: Applanix APX-15 UAV
Precision: 1 cm
Accuracy: 5 cm
Typ. flight speed: 5 m/s
Typ. flying height: 80 m
Max. rec. flying height: 100 m
Laser range: Up to 170 m
Laser wavelength: 905 nm
Max. data generated: 1 500 000 points/sec
Scanning frequency: Up to 100 Hz
Weight: 2.4 kg (5.3 lbs) batt. excl.
Size: L 353 x W 106 x H 149 mm
Autonomy: 1.5 hour typ.
Power consumption: 25 W
Operating temperature: -10 to 40 °C
Vx15-100: 100 kHz
Shots per second: Up to 100 000
Scanner field-of-view: 360°
Typ. flying height
natural targets ≥ 20%: 100 m
Point density
@50m AGL, 5m/s, 90°FOV: 50 pts/sqm
