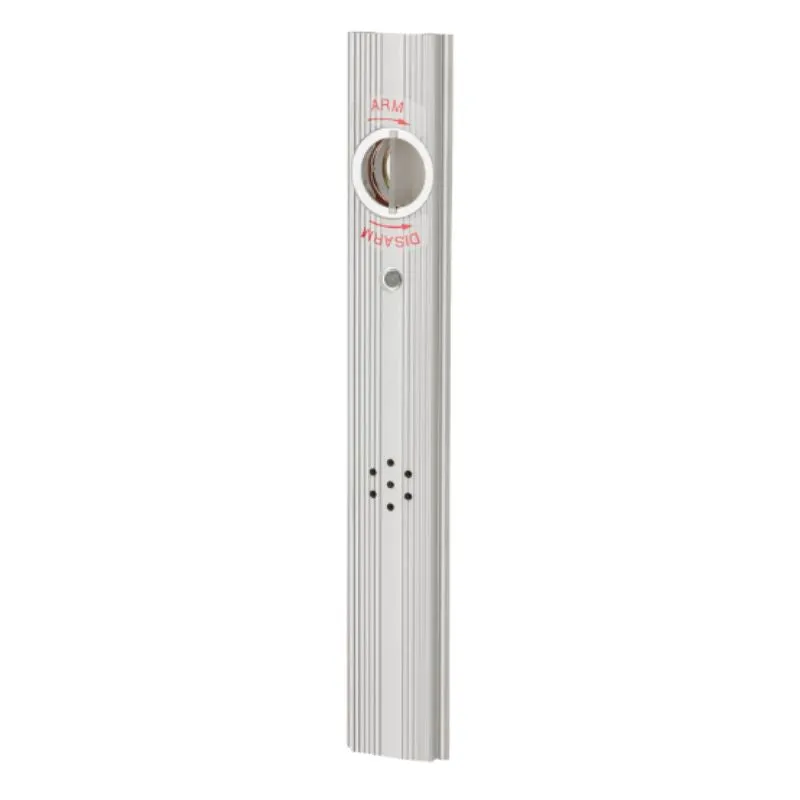

Von Duprin 99ALK Battery Powered Alarm Kit, For 99 Series Exit Device, Field Install Kit, Request to Exit Switch, Less Cylinder, Field Reversible

Von Duprin 99ALK Battery Powered Alarm Kit is a comprehensive solution for your exit device needs, featuring a request to exit switch and the option to be field reversible. It is compatible with the 99 series exit device and also includes a field install kit, making it easy to set up and use.

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
