Product Details
＋

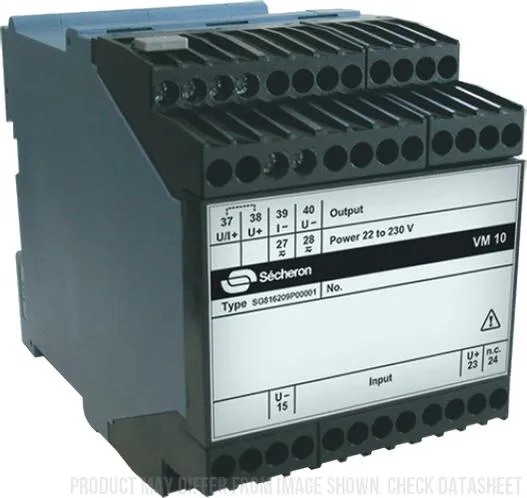

Sécheron VM10-3kV-5, Voltage Amplifier, Vpn = /-3000V Bipolar Selectable, 24...230VAC/DC, /-5V Output, 15kV Isolation
Features
- Bandwidth DC to 5kHz
- Digital Transducer/Amplifier
- Din Rail Mount
- Insulated plastic case recognized according to UL 94-V0
- Dual %V and 4-20mA Output
- Bipolar or Unpolar Measurement
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Low power consumption
Applications
- Railway substation or locomotive
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
Specification
| Sécheron Part Number | VM10 (3 [kV] bipolar, /-5 [V]) |
| Technology | Voltage Amplifier |
| Aperture | No Aperture |
| EMC | EN 50121-5 (in cubicle), EN 61326 Class B (Isolator standard) |
| Supply Voltage | 24...230VAC/DC -20% / 10%, Isolated |
| Primary Nominal Voltage (RMS DC) | /- 3000V |
| Output | /-5V Bipolar |
| Isolation | 15 kV |
| Bandwidth | DC-5 kHz |
| Mounting Style | Panel Mount |
| Operating Temperature Range | -25°C / 85°C |
| Accuracy | 1% |
| Unit Weight | 500g |
| Factory Pack Quantity | 4 |
