AMD Ryzen 5 PRO 5650G (6C/12T, 3.9/4.4GHz, 3MB L2/16MB L3), 1x 16GB UDIMM DDR4-3200, 512GB SSD M.2 2242 PCIe 3.0x4 NVMe, AMD Radeon Graphics, Windows 10 Pro 64

---

Small form factor, big impact

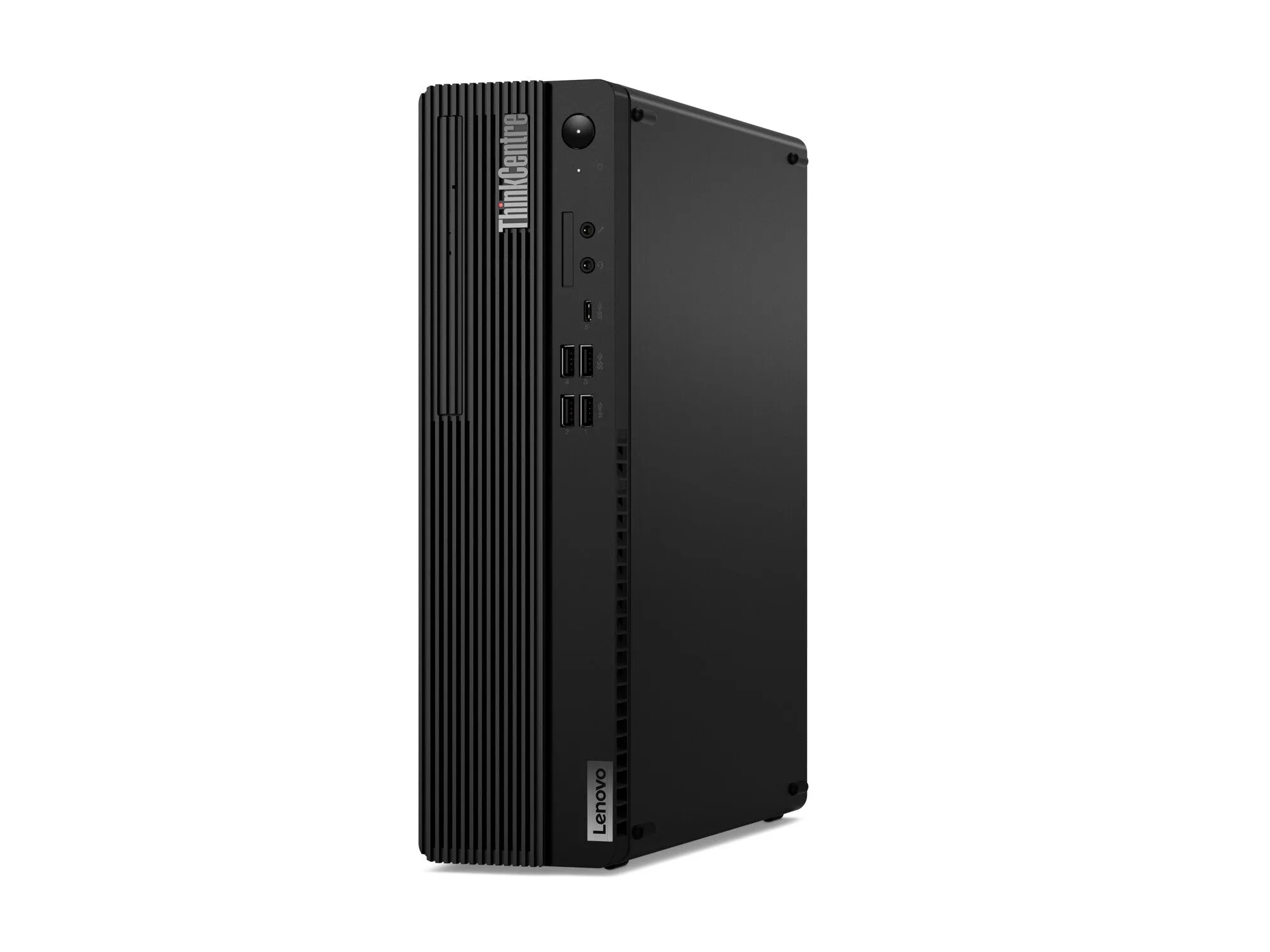

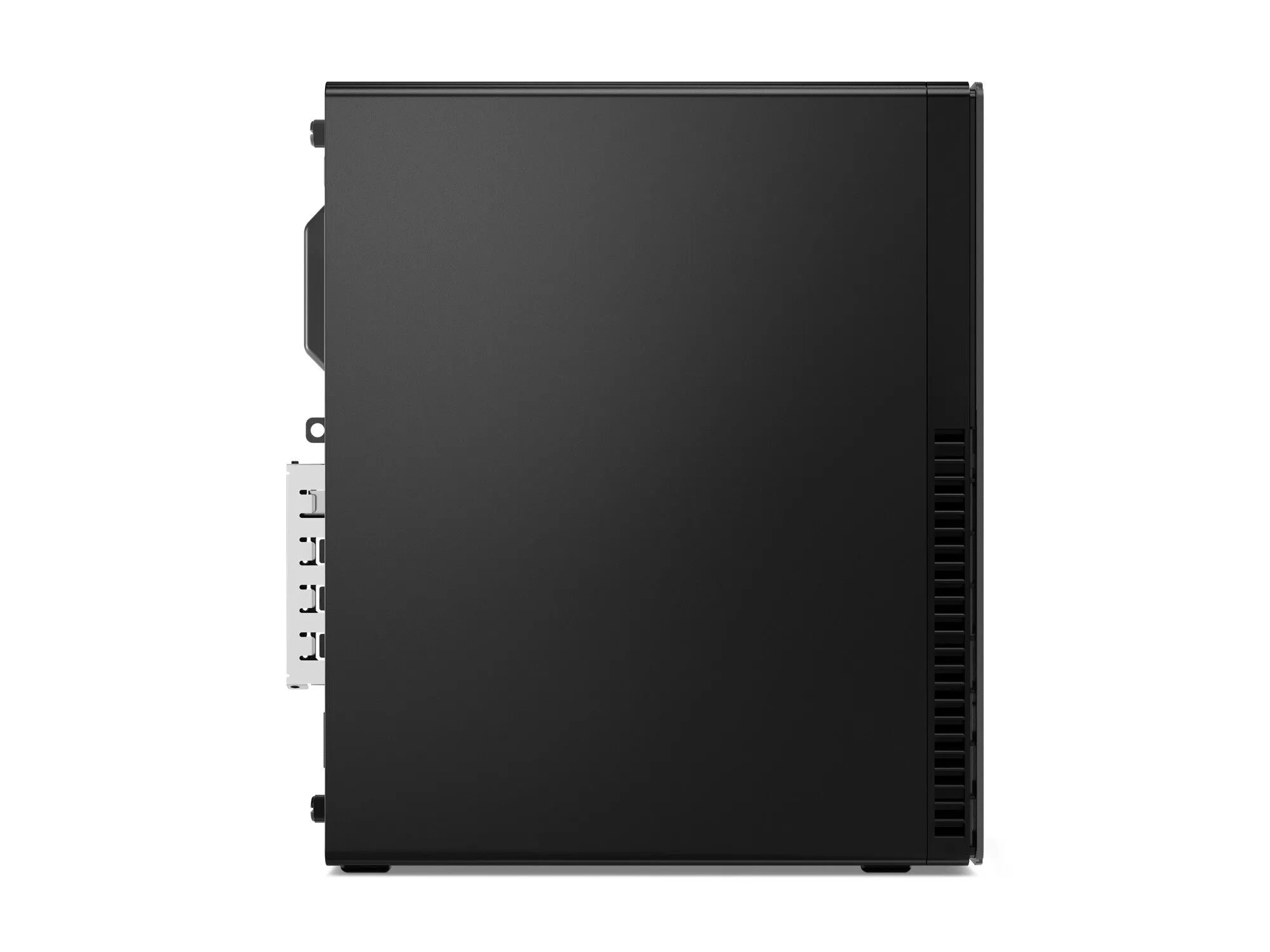

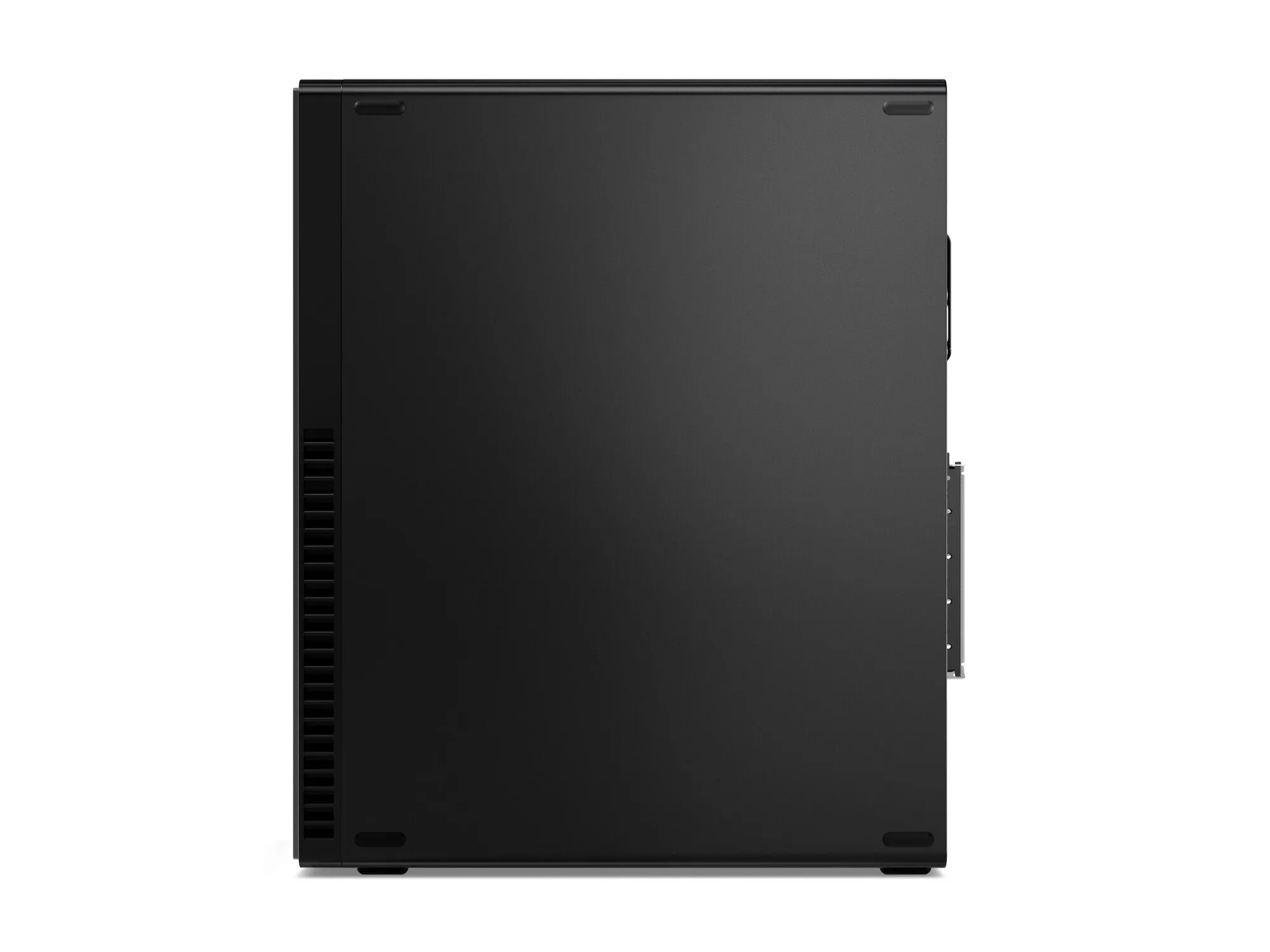

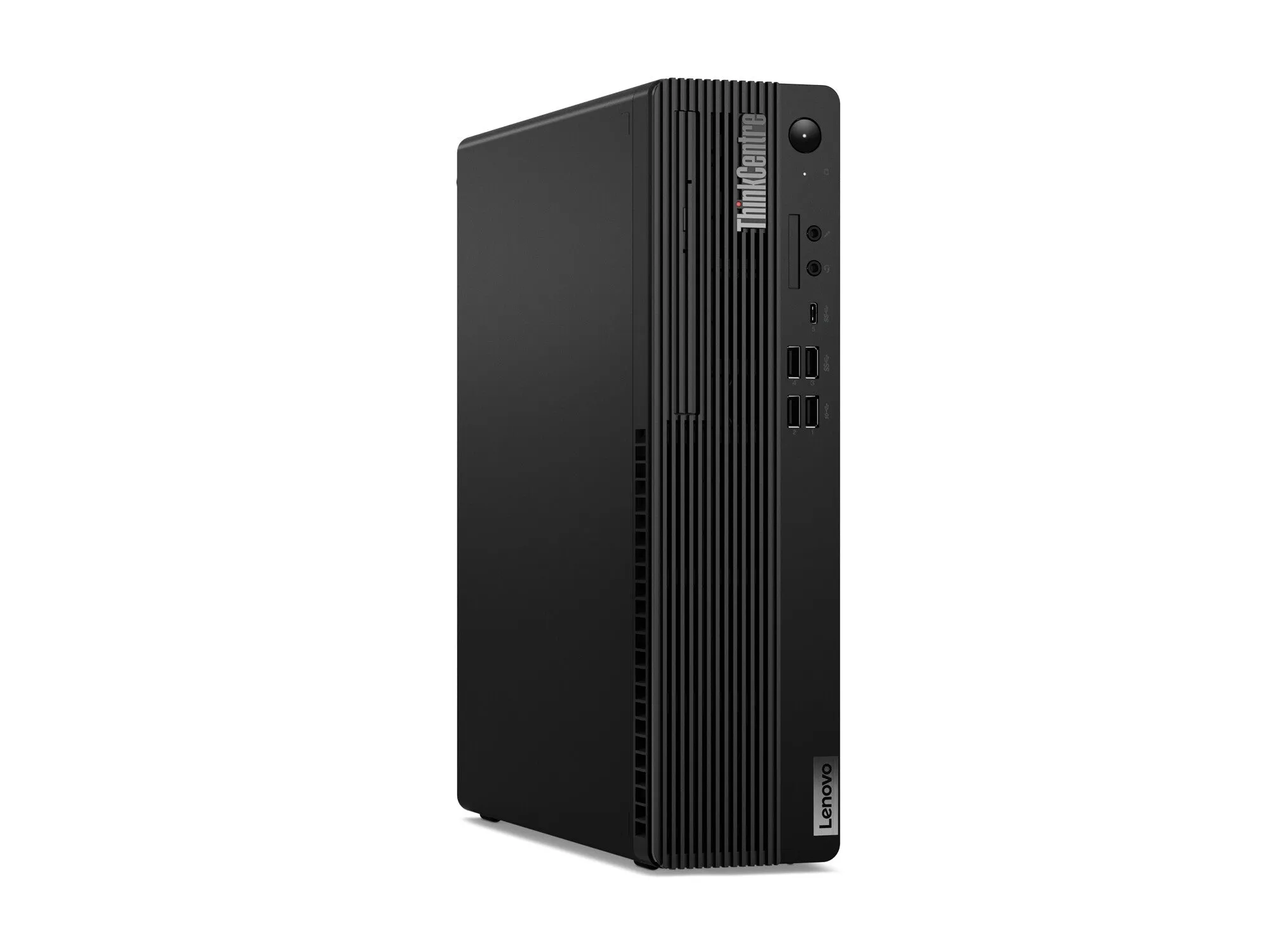

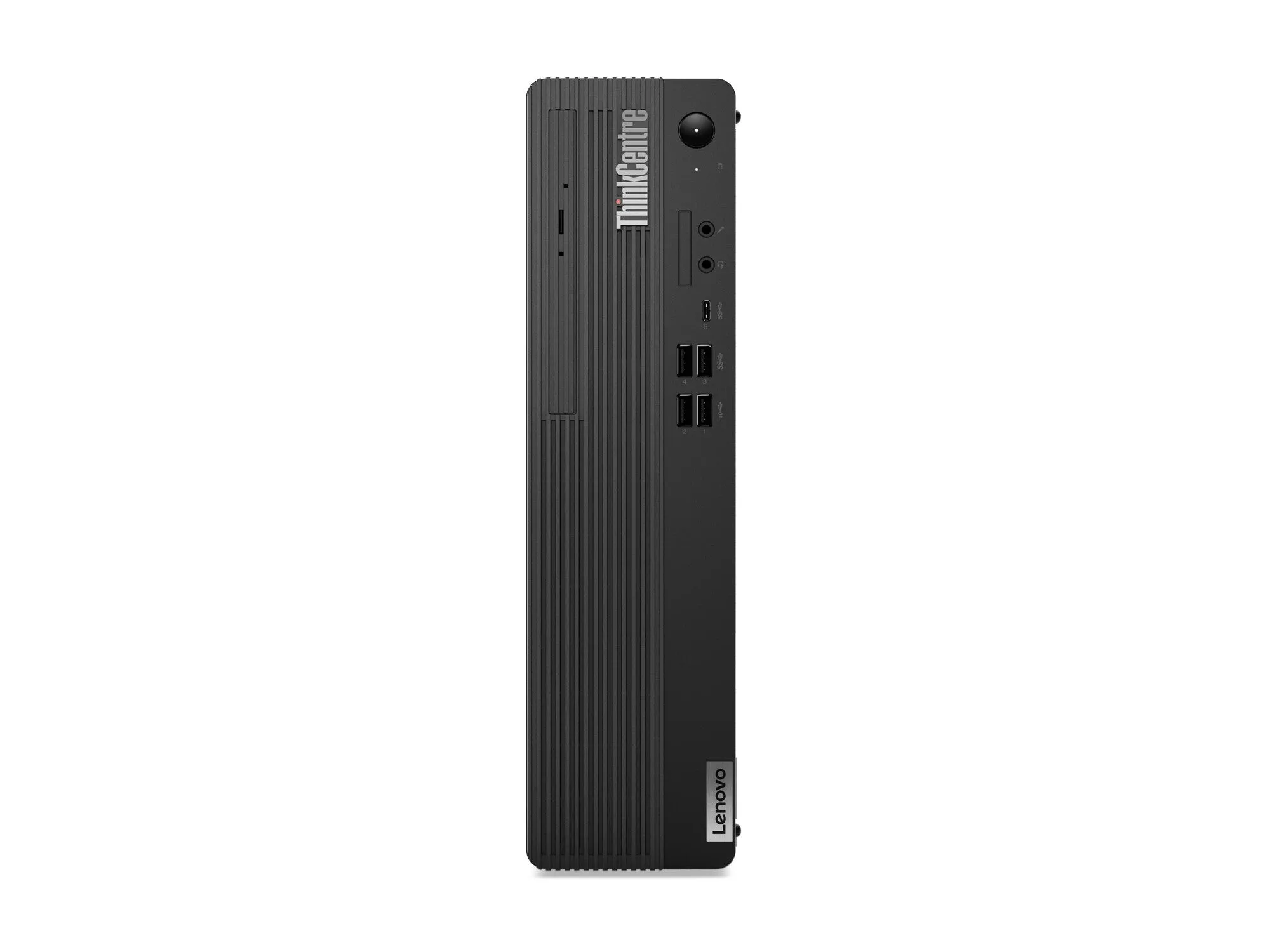

At 8.4L, the ThinkCentre M75s Gen 2 small form factor (SFF) PC saves space while making big contributions to your team. This powerful system that boasts the AMD Ryzen™ 7 5750G processor with PRO technologies delivers performance and manageability—plus it’s reliable and offers an expandable design—rounded out by multiple convenient features.

---

Processor
Processor threads	12
Processor cache	16 MB
Processor frequency	3.9 GHz
Processor boost frequency	4.4 GHz
Processor cores	6
Processor model	5650G
Processor generation	AMD Ryzen PRO 5000 Series
Processor family	AMD Ryzen™ 5 PRO
Processor manufacturer	AMD

Memory
Non-ECC	Yes
Memory clock speed	3200 MHz
Memory slots	4x DIMM
Memory layout (slots x size)	1 x 16 GB
Maximum internal memory	128 GB
Internal memory	16 GB
Internal memory type	DDR4-SDRAM

Storage
SSD form factor	M.2
SSD interface	NVMe, PCI Express 3.0
NVMe	Yes
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Storage media	SSD
Optical drive type	DVD±RW
Total storage capacity	512 GB
Card reader integrated	Yes

Graphics
On-board graphics card model	AMD Radeon Graphics
On-board GPU manufacturer	AMD
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No

Network
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes

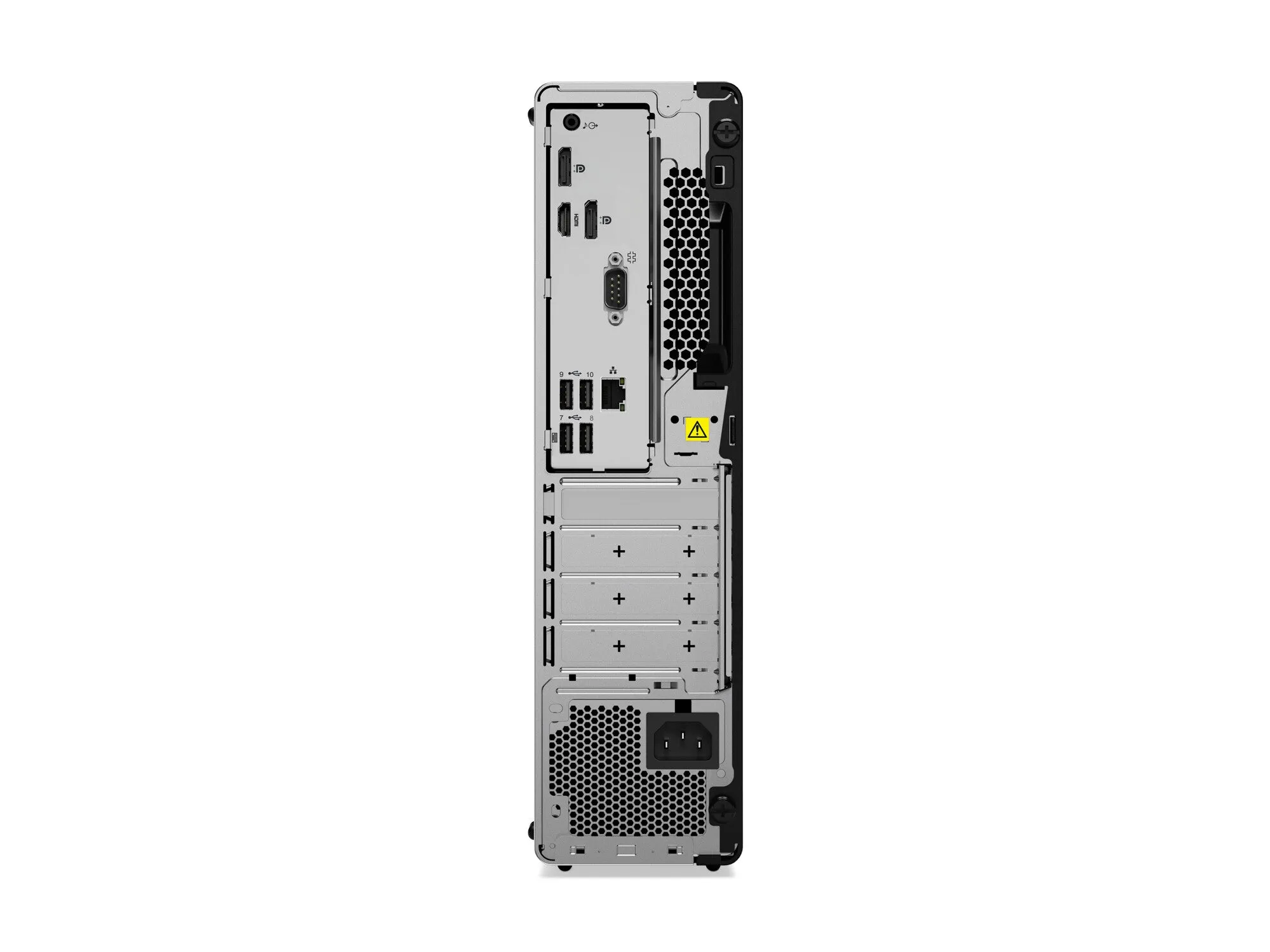

Ports & interfaces
Serial ports quantity	1
Combo headphone/mic port	Yes
Line-out	Yes
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 ports quantity	4

Design
Viewing window	No
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
Volume	8.2 L
Colour name	Black
Chassis type	SFF

Performance
Trusted Platform Module (TPM)	Yes
Password protection type	Power on, Supervisor
Password protection	Yes
Number of speakers	1
Built-in speaker(s)	Yes
Audio system	High Definition Audio
Audio chip	Realtek ALC623-CG
Motherboard chipset	AMD PRO 565
Product type	PC

Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro

Power
Power supply	180 W

Operational conditions
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 3048 m
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	MIL-STD-810H, ErP Lot 3
Compliance certificates	RoHS

Sustainability
Sustainability certificates	TCO

Weight & dimensions
Weight	5.3 kg
Height	340 mm
Depth	298 mm
Width	93 mm

Packaging content
Keyboard included	Yes
Mouse included	Yes
Display included	No

General
Product family	ThinkCentre

Other features
Harmonized System (HS) code	84715000
