Product Details
＋

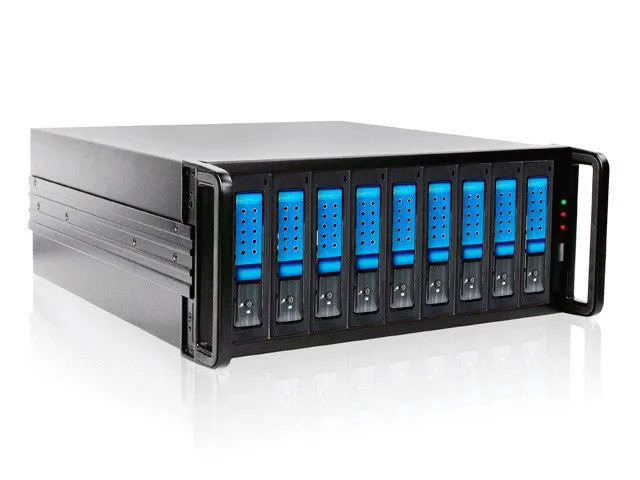

DAGE409U40DE-PM is an external 4U-9 bay Trayless hot-swappable SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 9 SATA drives for 1/0/5/JBOD RAID configuration. This 4U-9 Bay external SATA enclosure is designed with 2 high quality eSATA (Port Multiplier) connectors. One 120mm Ball bearing fan offer long lasting and enhanced thermal cooling solution. DAGE409U40DE-PM provides maximum storage and performance to high density storage system. 3.5" SAS/ SATA 6.0 Gb/s Silver Enclosure
Features:- 2 x eSATA Port Multiplier Interface for Easy Connection
- 120mm x 1 Cooling Fans for Ventilation
- Up to 9 Hot-Swappable 3.5" Drive Trays
- LED Indicators for Power and Activity on Each HDD Tray
- Hot-Swap Both on Host and Device
- Trayless Design
- Support 6.0 Gb/s SATA/ SAS HDDs
- Individual Lock of each HDD Tray for Physical Security
- RoHS Compliance Version: Yes
- Form Factor: 4U
- Host Interface: 2x eSATA-Port Multiplier
- HDD Interface: 3.5" SAS I/II & SATA I/II/III
- Hot Swap: Both on Host and Device
- Hotswap: 3.5" 9
- LED Display: Power and HDD Activity
- Material: Chassis: 1.2 mm SECC Zinc-Coated Steel
- Main Color Black
- Power Supply: 500W Single PSU
- Cooling Fan: 1x120mm
- Dimensions (WxHxD) 19.00" x 7.00" x 20.00"
- 482.6 mm x 177.8 mm x 508.0 mm
