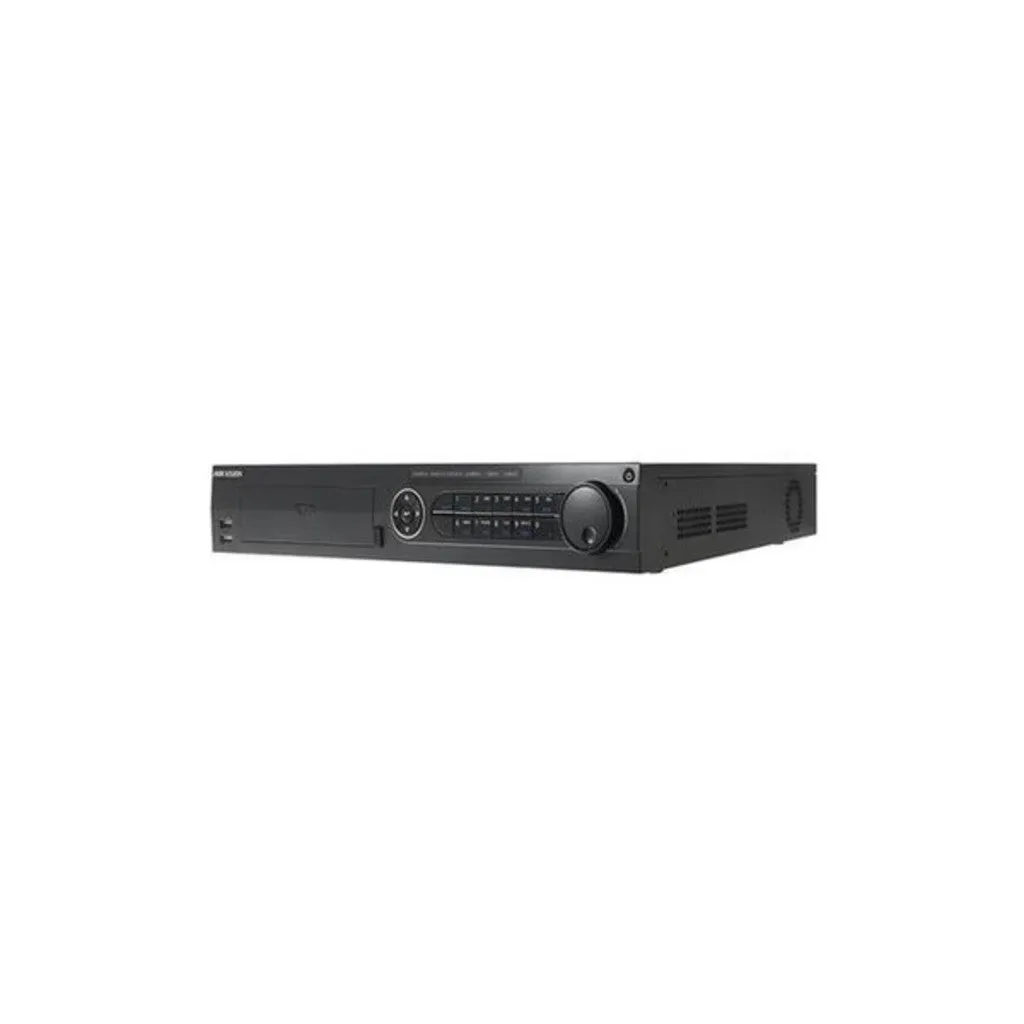

Product Description
-
Third-party network cameras supported
-
Up to 6 Mega pixels resolution recording
-
HDMI and VGA output at up to 1920×1080P resolution
-
16/32-ch network cameras can be connected with 160M incoming bandwidth
-
Up to 4 SATA interfaces
-
Support network detection, including network delay, packet loss, etc
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-7716NI-E4 |
|
Product Type |
Network Video Recorder |
|
IP video input |
16-ch |
|
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Outgoing bandwidth |
80Mbps |
|
Incoming bandwidth |
160Mbps |
|
Remote connection |
128 |
|
HDMI/VGA output |
1-ch,
resolution: |
|
Recording Resolution |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Frame Rate |
Main
stream: 50 fps (P) / 60 fps (N) |
|
Audio Output |
1-ch, RCA (Linear, 1kΩ) |
|
Live view / Playback |
6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability |
16-ch@4CIF, 12-ch@720P, 6-ch@1080P |
|
SATA |
4 SATA interfaces for 2 HDDs 1 DVD-R/W (default), or 4HDDs |
|
Capacity |
Up to 6TB capacity for each HDD |
|
Network Interface |
2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
|
Serial Interface |
RS-232; RS-485; |
|
USB Interface |
Front
panel: 2 × USB 2.0 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
Power Supply |
100~240VAC |
|
Consumption(without hard disk and POE) |
≤ 20W |
|
Working Temperature |
-10 ºC ~ 55 ºC ( 14 ºF~ 131 ºF) |
|
Working Humidity |
10 % ~ 90 % |
|
Chassis |
19-inch rack-mounted 1.5U chassis |
|
Dimensions |
445 × 390 × 70mm |
|
Weight |
≤ 4 Kg |
