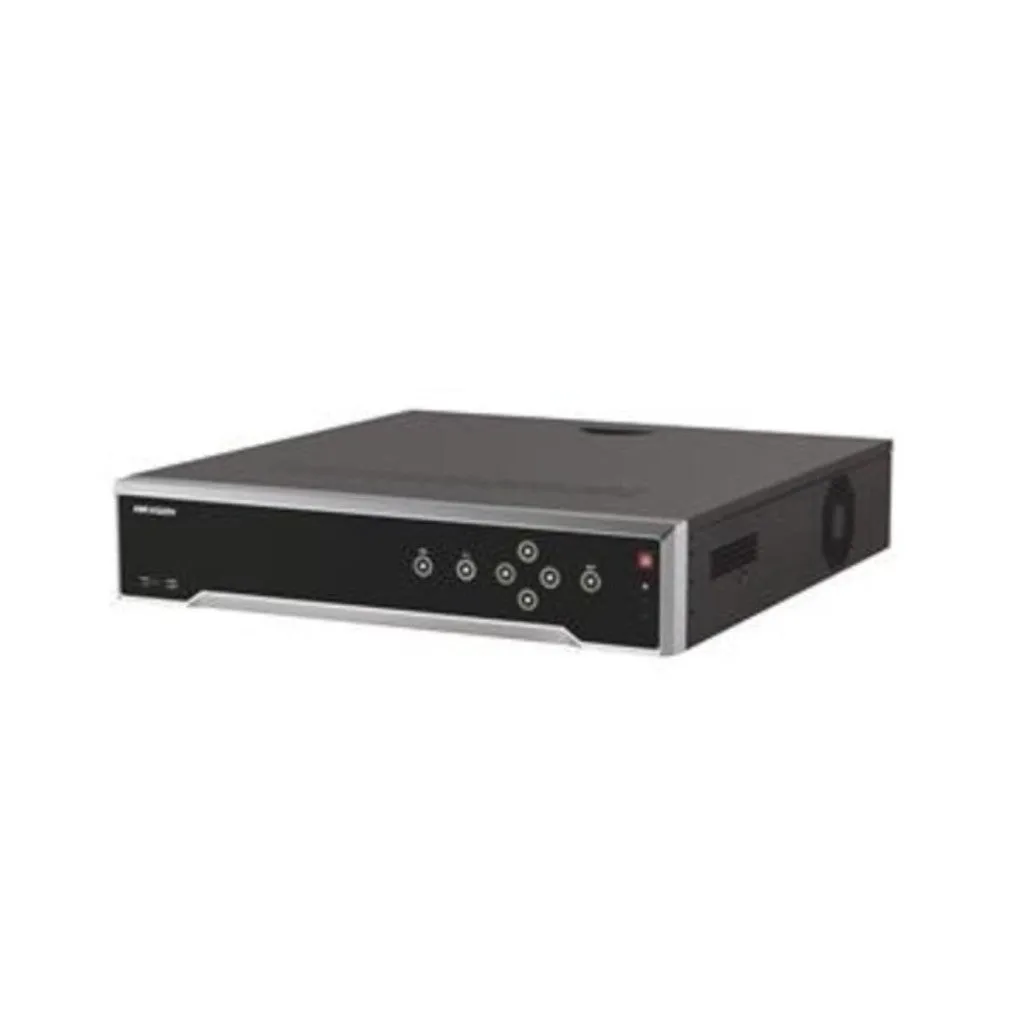

Product Description
-
Third-party network cameras supported
-
Up to 8 Mega pixels resolution recording
-
Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160)resolution
-
16/32-ch network cameras can be connected with 160M/256M incoming bandwidth
-
Up to 4 SATA interfaces Support dual-os to ensure high reliablility of system running
-
Support various VCA detection alarm and VCA search
-
Support H.265/H.264/MPEG4 video formats
Product Specification
|
Brand |
Hikvision |
|
Product Code |
DS-7P16NI-K4 |
|
Product Type |
Network Video Recorder |
|
IP video input |
16-ch |
|
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
|
Outgoing bandwidth |
160Mbps |
|
Incoming bandwidth |
160Mbps |
|
Remote connection |
128 |
|
HDMI Output |
1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Recording Resolution |
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Audio Output |
1-ch, RCA (Linear, 1kΩ) |
|
Synchronous Playback |
16-ch |
|
VGA Output |
1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
|
Live view / Playback |
8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Capability |
8-ch@1080P |
|
SATA |
2 SATA interfaces for 2 HDDs |
|
Capacity |
Up to 6TB capacity for each HDD |
|
Network Interface |
2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces |
|
Serial Interface |
RS-232; RS-485; |
|
USB Interface |
Front
panel: 2 × USB 2.0 |
|
Alarm In |
16-ch |
|
Alarm Out |
4-ch |
|
Power Supply |
100 to 240 VAC |
|
Consumption(without hard disk and POE) |
≤20 W |
|
Working Temperature |
-10 oC ~ 55 oC ( 14 oF~ 131 oF) |
|
Working Humidity |
10 % ~ 90 % |
|
Chassis |
19-inch rack-mounted 1.5U chassis |
|
Dimensions |
445 × 390 × 70 mm |
|
Weight |
≤ 5 Kg |
