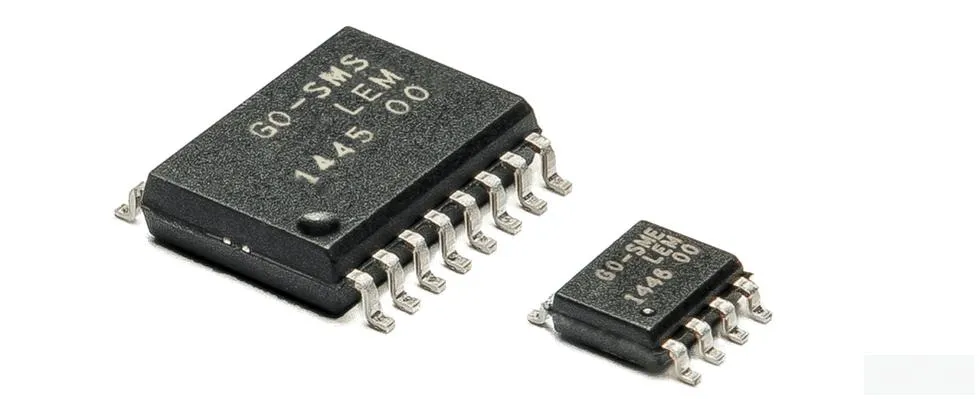

GO 8-SME/SP4, O/L Hall Effect Current Sensor, 8 Amp, SMD, 3.3V Supply
GO 8-SME/SP4, O/L Hall Effect Current Sensor, 8 Amp, SMD, 3.3V Supply
  • GO 8-SME/SP4, O/L Hall Effect Current Sensor, 8 Amp, SMD, 3.3V Supply
Product Details ＋

GO 8-SME/SP4, O/L Hall Effect Current Sensor with evaluation PCB, 8 Amp

Features

  • Hall effect measuring principle
  • Galvanic separation between primary and secondary circuit
  • Insulated test voltage 3000 V RMS
  • Low power consumption
  • Extremely low profile
  • Single power supply 5 V
  • Double overcurrent detection
  • Fixed offset & sensitivity
  • Response time 2 µs.

Advantages

  • Small size and space saving
  • High immunity to external interference
  • High insulation capability Industrial.
  • Low electrical resistance (0.75 mΩ)
  • No magnetic hysteresis
  • Robust against external fields and cross-talk.

Applications

  • Appliances
  • Small drives
  • HVAC
  • Solar
  • E-Bikes

Standards



  • IEC 62109-1: 2010
  • IEC 60950-1: 2005
  • IEC 61800-5-1: 2007
  • UL 1577: 2014.

    •

    Application Domains

    • Industrial
    Specification
    LEM Part Number GO 8-SME/SP4
    Technology Closed Loop Hall Effect
    ROHS Yes
    Supply Voltage 3.3 VDC
    Load Current (RMS DC) 4 Amp
    Overload Capability /-200 Amp
    Output 2.5 Vref
    Isolation 2.5 kV
    Bandwidth DC-300 kHz
    Mounting Style Surface Mount - SOIC 8 Pin
    Operating Temperature Range -40°C / 125°C
    Accuracy 2%
    Termination Style N/A
    Unit Weight 10g
    Factory Pack Quantity 150



    Datasheet
    GO 8-SME/SP4, O/L Hall Effect Current Sensor, 8 Amp, SMD, 3.3V Supply
