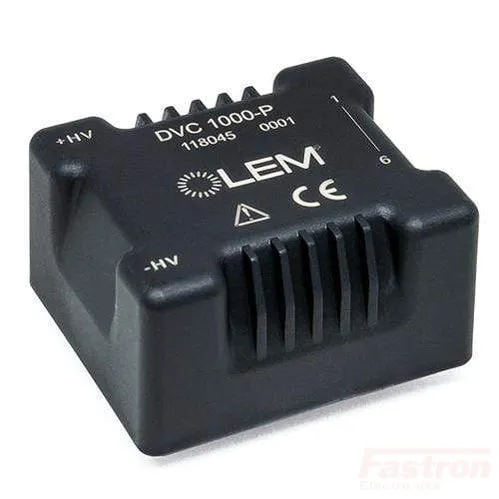

LEM DVC 1000-P, C/L Voltage Transducer, 1000V AC/DC, 5VDC Supply, 2.5Vref Output, PCB Mount
Features
- Bandwidth DC to 47kHz
- 8 Pins
- 5V Unipolar Supply
- Closed loop transducer using Hall Effect
- Compact and versatile
- PCB Mount
- Insulated plastic case recognized according to UL 94-V0
Advantages
- Very good linearity
- High accuracy
- Low temperature drift
- Wide frequency bandwidth
- Very low insertion losses
- High immunity to external interference
- Voltage overload capability
- Low power consumption
Applications
- AC variable speed drives and servo motor drives
- Single and Three Phase Inverters
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Water Treatment Electronics
Specification
| LEM Part Number | DVC 1000-P |
| Technology | Closed Loop Hall Effect |
| Aperture | No Aperture |
| ROHS | Yes |
| Supply Voltage | 5VDC |
| Primary Nominal Voltage | /-1000V AC/DC |
| Measurement Range | /-1500V AC/DC |
| Output | 2.5V Vref 1.17V -> 3.83V (0.5 to 4.5V over range) Instantaneous |
| Isolation | 4.2 kV |
| Bandwidth | DC-47 kHz |
| Mounting Style | PCB Mount |
| Operating Temperature Range | -40°C / 85°C |
| Accuracy | 1% |
| Termination Style | Through Hole PCB |
| Unit Weight | 22g |
| Factory Pack Quantity | 25 |
