Product Details
＋

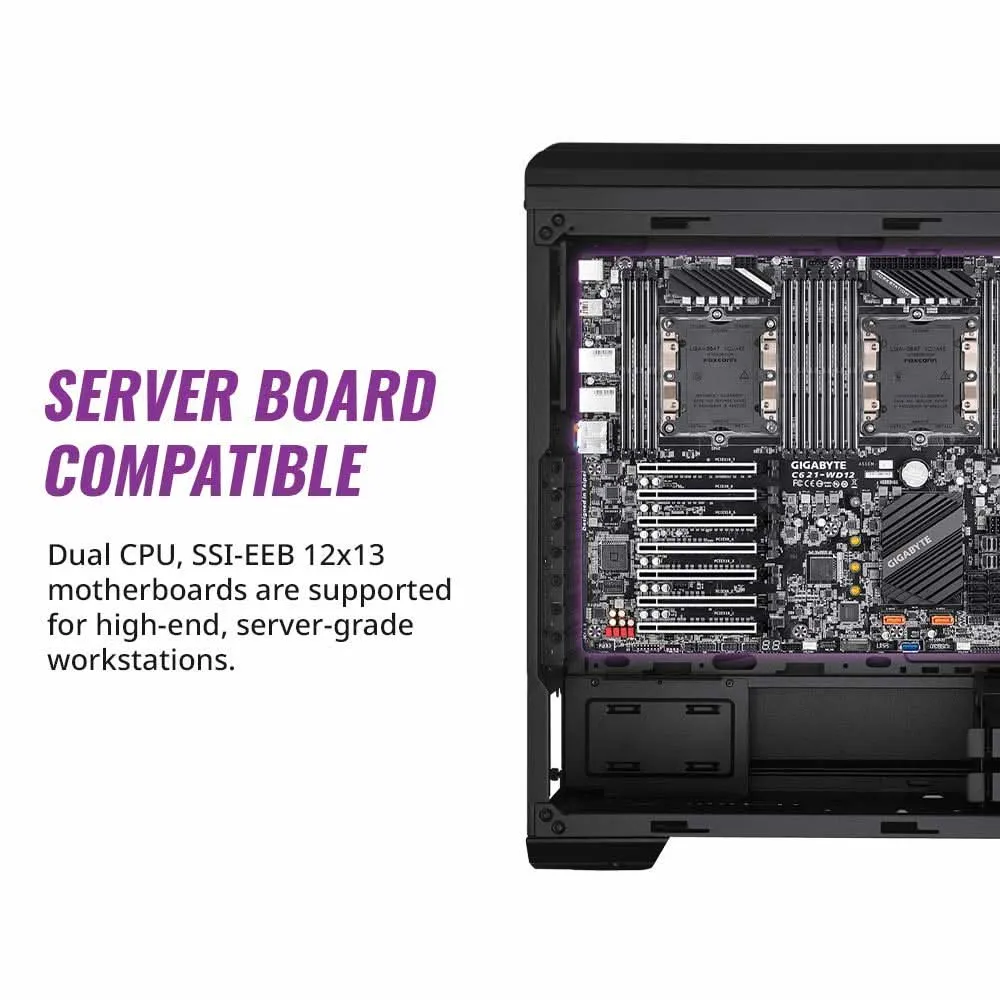

- Dual CPU Socket motherboards are supported for high-end, server-grade workstations.
- Two 2.5î SSDs, 3.5î HDDs, or a combination of both are conveniently accessible from the front panel for interchangeable, on-the-fly data retrieval.
- A high speed, USB 3.0 SD Card Reader is integrated on the I/O panel for immediate access to files.

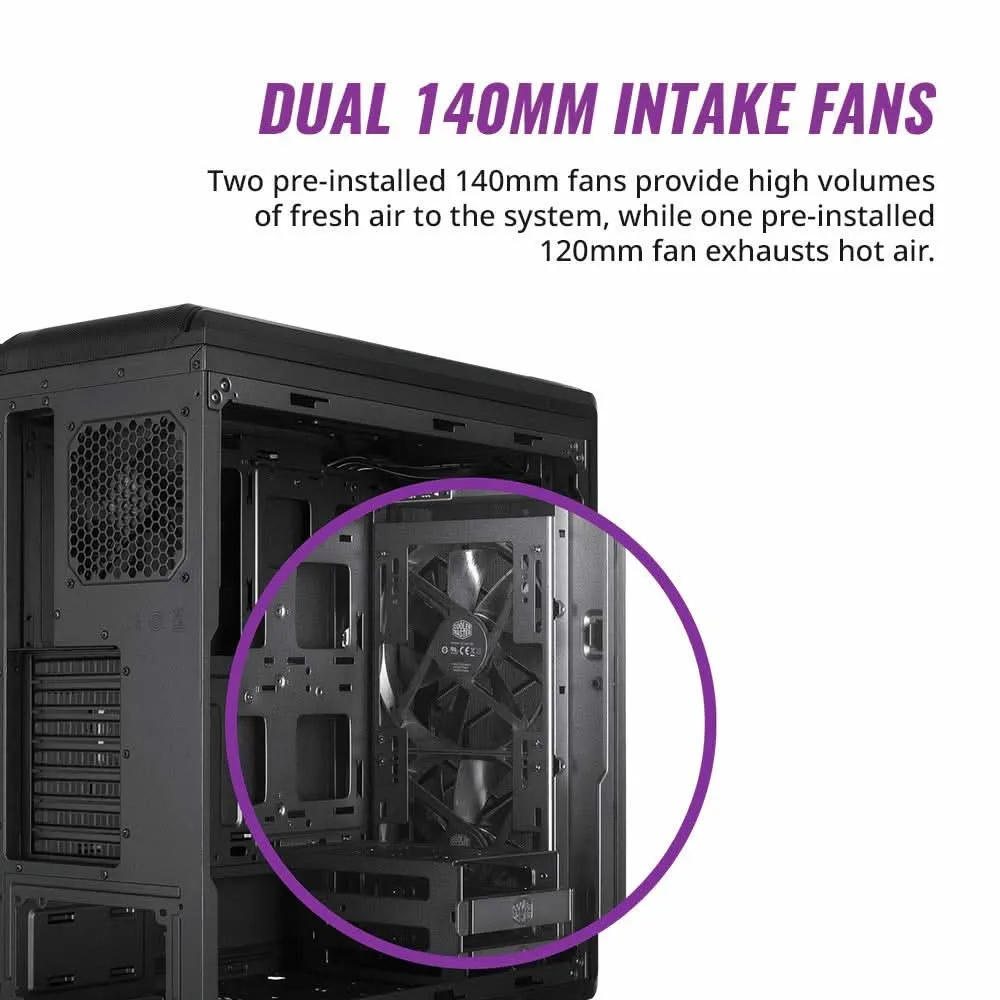

- Two pre-installed 140mm fans provide high volumes of fresh air to the system through fine mesh front, while one preinstalled 120mm fan exhausts hot air.
- An included drive cage, able to mount 2 x 2.5î SSDs or 2 x 3.5î HDDs, can be adapted for multiple GPU configurations or repositioned for radiator support depending on the workstationís requirements.
- The front panel cables are pre-grouped in a modular plastic sleeve for an easier and faster assembly of the system.
Specifications
MODEL NUMBER |
MCB-NR600P-KNNN-S00 |
SERIES |
MASTERBOX SERIES |
SIZE |
MID TOWER |
AVAILABLE COLOR(S) |
BLACK |
MATERIALS |
MESH, STEEL, PLASTIC |
DIMENSIONS (L X W X H) |
493MM X 220MM X 506MM (INCL. PROTRUSIONS), 482MM X 220MM X 477MM (EXCL. PROTRUSIONS) |
MOTHERBOARD SUPPORT |
MINI ITX, MICRO ATX, ATX, SSI CEB, E-ATX, SSI EEB |
EXPANSION SLOTS |
7 |
3.5" DRIVE BAYS |
1 |
2.5" / 3.5" DRIVE BAYS (COMBO) |
2 |
2.5" DRIVE BAYS |
4 |
I/O PANEL |
1X USB 3.2 GEN 1 TYPE-C, 2X USB 3.2 GEN 1 TYPE-A, 1X SD/MMC CARD READER, 1X 3.5MM HEADSET JACK (AUDIO MIC) |
PRE-INSTALLED FANS - TOP |
N/A |
PRE-INSTALLED FANS - REAR |
1X 120MM |
PRE-INSTALLED FANS - FRONT |
2X 140MM, 1200RPM |
FAN SUPPORT - TOP |
3X 120MM, 2X 140MM |
FAN SUPPORT - FRONT |
2X 120/140MM |
FAN SUPPORT - REAR |
1X 120MM |
RADIATOR SUPPORT - TOP |
120MM, 140MM, 240MM, 280MM, 360MM, (MAXIMUM THICKNESS CLEARANCE 43MM) |
RADIATOR SUPPORT - FRONT |
120MM, 140MM, 240MM, 280MM, (240MM AND 280MM REQUIRE REPOSITIONING OF STORAGE CAGE) |
RADIATOR SUPPORT - REAR |
120MM |
CLEARANCE - CPU COOLER |
171MM |
CLEARANCE - PSU |
276MM, 180MM |
CLEARANCE - GFX |
410MM/16.1" |
CABLE ROUTING |
27-29MM |
DUST FILTERS |
TOP, FRONT, BOTTOM |
POWER SUPPLY SUPPORT |
BOTTOM MOUNT, ATX |
WARRANTY |
2 YEARS |
EAN CODE |
4.71951E 12 |
UPC CODE |
8.84102E 11 |
